Monitoring Redis logs with ClickStack

Integration with existing Redis

This section covers configuring your existing Redis installation to send logs to ClickStack by modifying the ClickStack OTel collector configuration. If you would like to test the Redis integration before configuring your own existing setup, you can test with our preconfigured setup and sample data in the “Demo dataset” section.

Prerequisites

ClickStack instance running
Existing Redis installation (version 3.0 or newer)
Access to Redis log files

Verify Redis logging configuration

First, check your Redis logging configuration. Connect to Redis and check the log file location:

redis-cli CONFIG GET logfile

Common Redis log locations:

Linux (apt/yum): /var/log/redis/redis-server.log
macOS (Homebrew): /usr/local/var/log/redis.log
Docker: Often logged to stdout, but can be configured to write to /data/redis.log

If Redis is logging to stdout, configure it to write to a file by updating redis.conf:

# Log to file instead of stdout
logfile /var/log/redis/redis-server.log

# Set log level (options: debug, verbose, notice, warning)
loglevel notice

After changing the configuration, restart Redis:

# For systemd
sudo systemctl restart redis

# For Docker
docker restart <redis-container>

Create custom OTel collector configuration

ClickStack allows you to extend the base OpenTelemetry Collector configuration by mounting a custom configuration file and setting an environment variable. The custom configuration is merged with the base configuration managed by HyperDX via OpAMP.

Create a file named redis-monitoring.yaml with the following configuration:

receivers:
  filelog/redis:
    include:
      - /var/log/redis/redis-server.log
    start_at: beginning
    operators:
      - type: regex_parser
        regex: '^(?P\d+):(?P\w+) (?P\d{2} \w+ \d{4} \d{2}:\d{2}:\d{2})\.\d+ (?P[.\-*#]) (?P.*)$'
        parse_from: body
        parse_to: attributes

      - type: time_parser
        parse_from: attributes.timestamp
        layout: '%d %b %Y %H:%M:%S'

      - type: add
        field: attributes.source
        value: "redis"

      - type: add
        field: resource["service.name"]
        value: "redis-production"

service:
  pipelines:
    logs/redis:
      receivers: [filelog/redis]
      processors:
        - memory_limiter
        - transform
        - batch
      exporters:
        - clickhouse

This configuration:

Reads Redis Logs from their standard location
Parses Redis’s log format using regex to extract structured fields (pid, role, timestamp, log_level, message)
Adds source: redis attribute for filtering in HyperDX
Routes logs to the ClickHouse exporter via a dedicated pipeline

Configure ClickStack to load custom configuration

To enable custom collector configuration in your existing ClickStack deployment, you must:

Mount the custom config file at /etc/otelcol-contrib/custom.config.yaml
Set the environment variable CUSTOM_OTELCOL_CONFIG_FILE=/etc/otelcol-contrib/custom.config.yaml
Mount your Redis log directory so the collector can read them

Option 1: Docker Compose

Update your ClickStack deployment configuration:

services:
  clickstack:
    # ... existing configuration ...
    environment:
      - CUSTOM_OTELCOL_CONFIG_FILE=/etc/otelcol-contrib/custom.config.yaml
      # ... other environment variables ...
    volumes:
      - ./redis-monitoring.yaml:/etc/otelcol-contrib/custom.config.yaml:ro
      - /var/log/redis:/var/log/redis:ro
      # ... other volumes ...

Option 2: Docker Run (All-in-One Image)

If you’re using the all-in-one image with docker, run:

docker run --name clickstack \
  -p 8080:8080 -p 4317:4317 -p 4318:4318 \
  -e CUSTOM_OTELCOL_CONFIG_FILE=/etc/otelcol-contrib/custom.config.yaml \
  -v "$(pwd)/redis-monitoring.yaml:/etc/otelcol-contrib/custom.config.yaml:ro" \
  -v /var/log/redis:/var/log/redis:ro \
  clickhouse/clickstack-all-in-one:latest

Verifying Logs in HyperDX

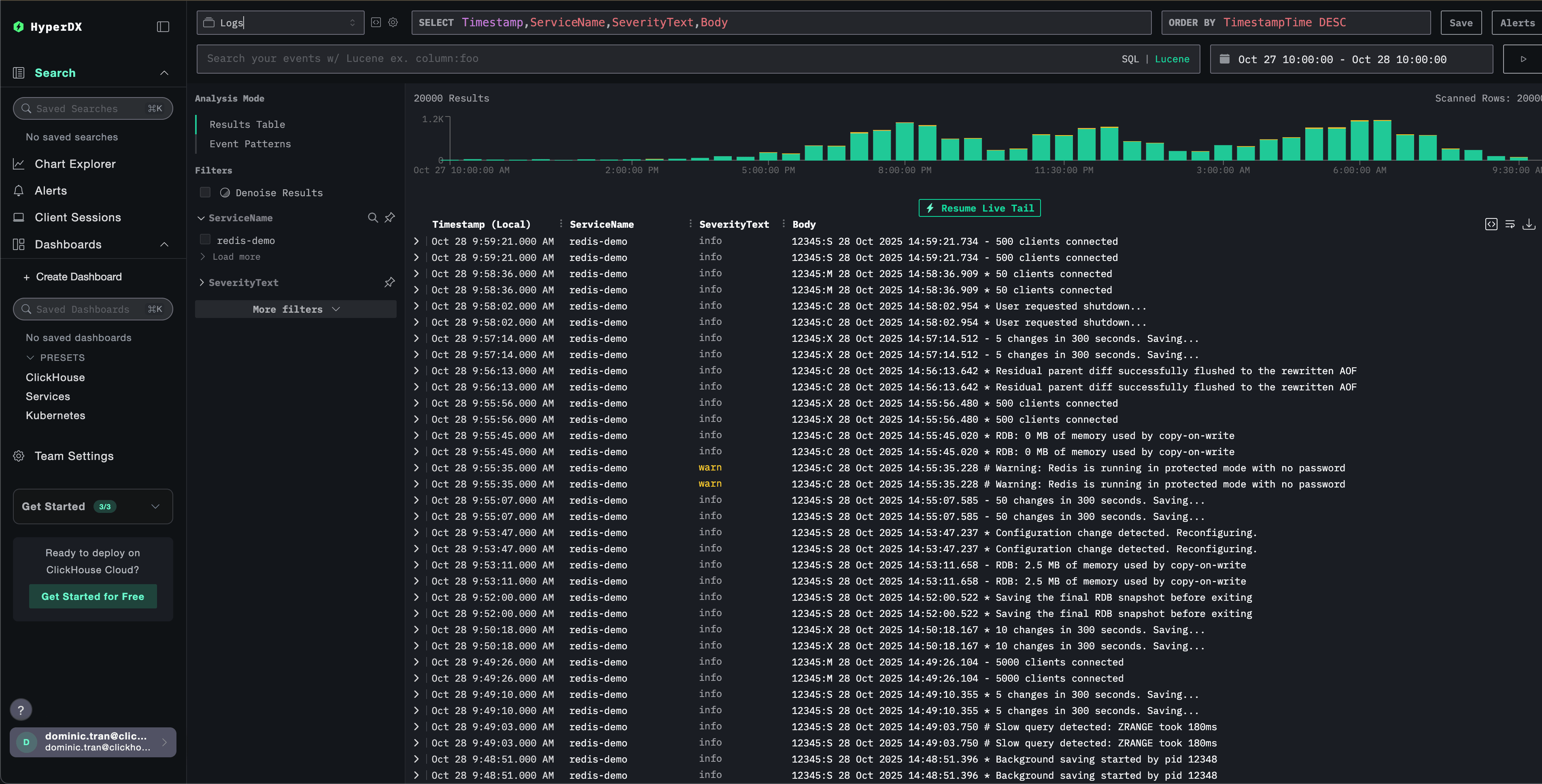

Once configured, log into HyperDX and verify that logs are flowing:

Demo dataset

For users who want to test the Redis integration before configuring their production systems, we provide a sample dataset of pre-generated Redis Logs with realistic patterns.

Download the sample dataset

Download the sample log file:

curl -O https://datasets-documentation.s3.eu-west-3.amazonaws.com/clickstack-integrations/redis/redis-server.log

Create test collector configuration

Create a file named redis-demo.yaml with the following configuration:

cat > redis-demo.yaml << 'EOF'
receivers:
  filelog/redis:
    include:
      - /tmp/redis-demo/redis-server.log
    start_at: beginning  # Read from beginning for demo data
    operators:
      - type: regex_parser
        regex: '^(?P<pid>\d+):(?P<role>\w+) (?P<timestamp>\d{2} \w+ \d{4} \d{2}:\d{2}:\d{2})\.\d+ (?P<log_level>[.\-*#]) (?P<message>.*)$'
        parse_from: body
        parse_to: attributes

      - type: time_parser
        parse_from: attributes.timestamp
        layout: '%d %b %Y %H:%M:%S'

      - type: add
        field: attributes.source
        value: "redis-demo"

      - type: add
        field: resource["service.name"]
        value: "redis-demo"

service:
  pipelines:
    logs/redis-demo:
      receivers: [filelog/redis]
      processors:
        - memory_limiter
        - transform
        - batch
      exporters:
        - clickhouse
EOF

Run ClickStack with demo configuration

Run ClickStack with the demo logs and configuration:

docker run --name clickstack-demo \
  -p 8080:8080 -p 4317:4317 -p 4318:4318 \
  -e CUSTOM_OTELCOL_CONFIG_FILE=/etc/otelcol-contrib/custom.config.yaml \
  -v "$(pwd)/redis-demo.yaml:/etc/otelcol-contrib/custom.config.yaml:ro" \
  -v "$(pwd)/redis-server.log:/tmp/redis-demo/redis-server.log:ro" \
  clickhouse/clickstack-all-in-one:latest

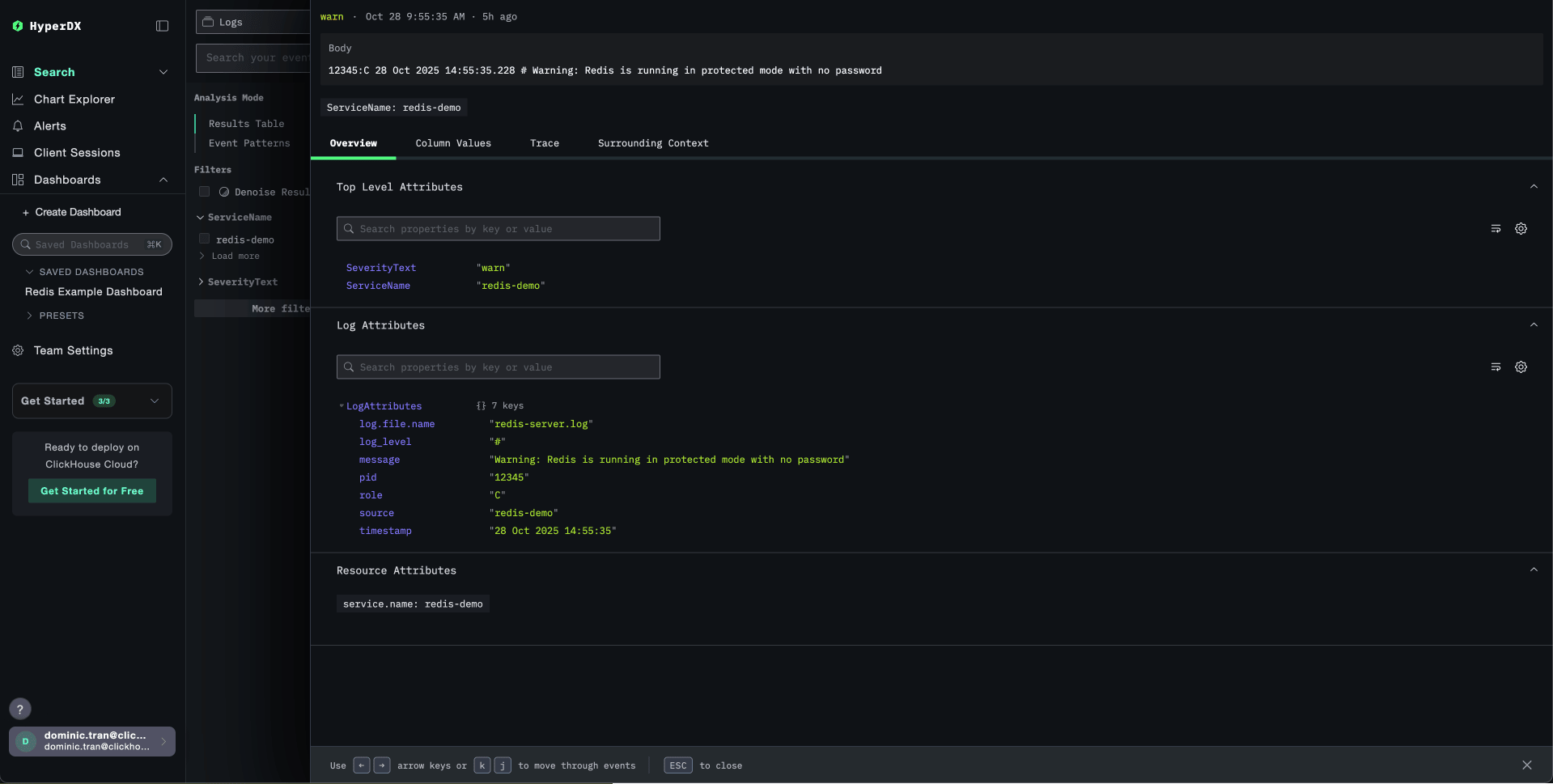

Verify logs in HyperDX

Once ClickStack is running:

Open HyperDX and log in to your account (you may need to create an account first)
Navigate to the Search view and set the source to Logs
Set the time range to 2025-10-26 10:00:00 - 2025-10-29 10:00:00

Dashboards and visualization

To help you get started monitoring Redis with ClickStack, we provide essential visualizations for Redis Logs.

Download the dashboard configuration

Download the dashboard configuration file.

Import Pre-built Dashboard

Open HyperDX and navigate to the Dashboards section.
Click “Import Dashboard” in the upper right corner under the ellipses.

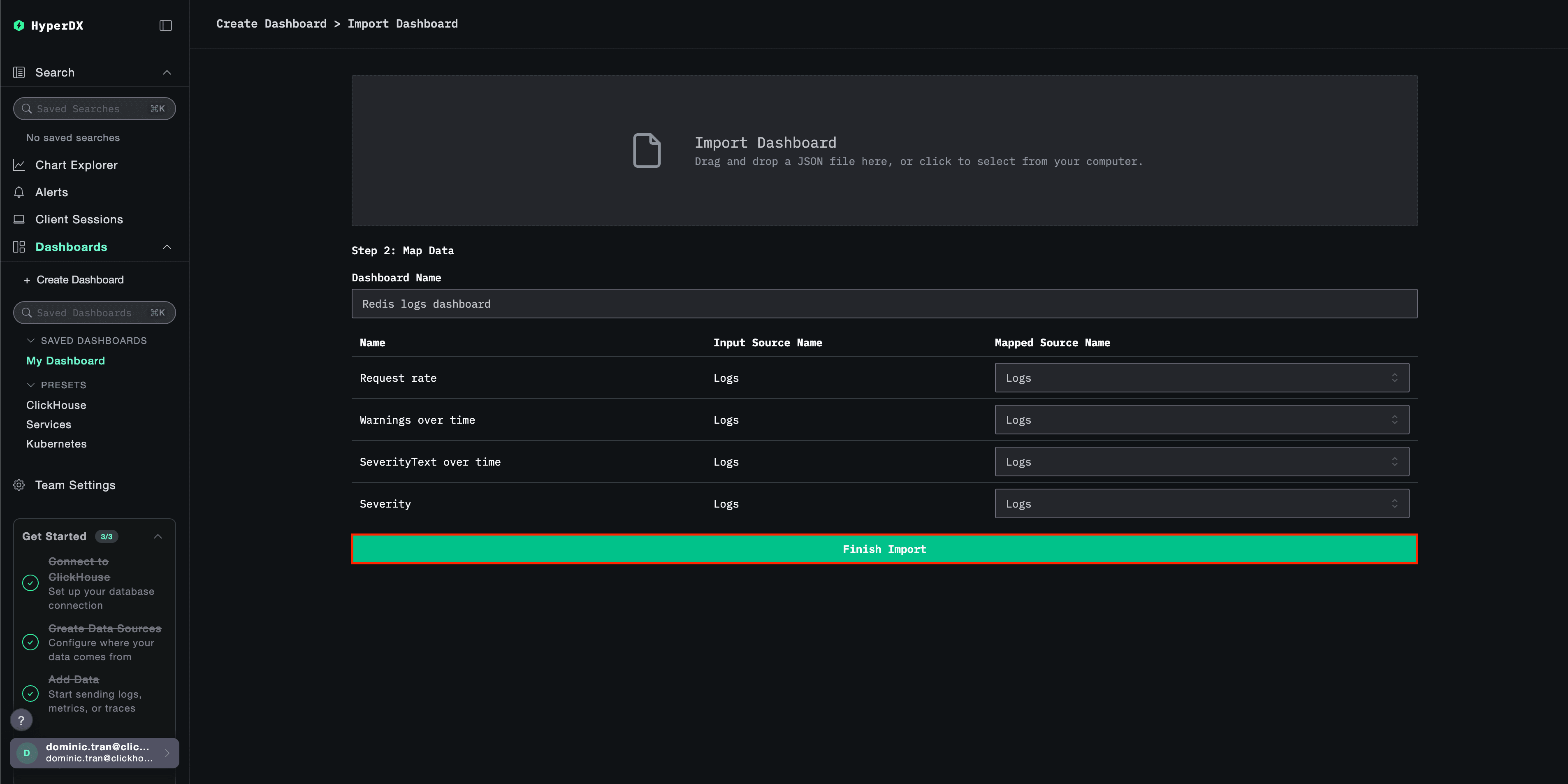

Upload the redis-logs-dashboard.json file and click finish import.

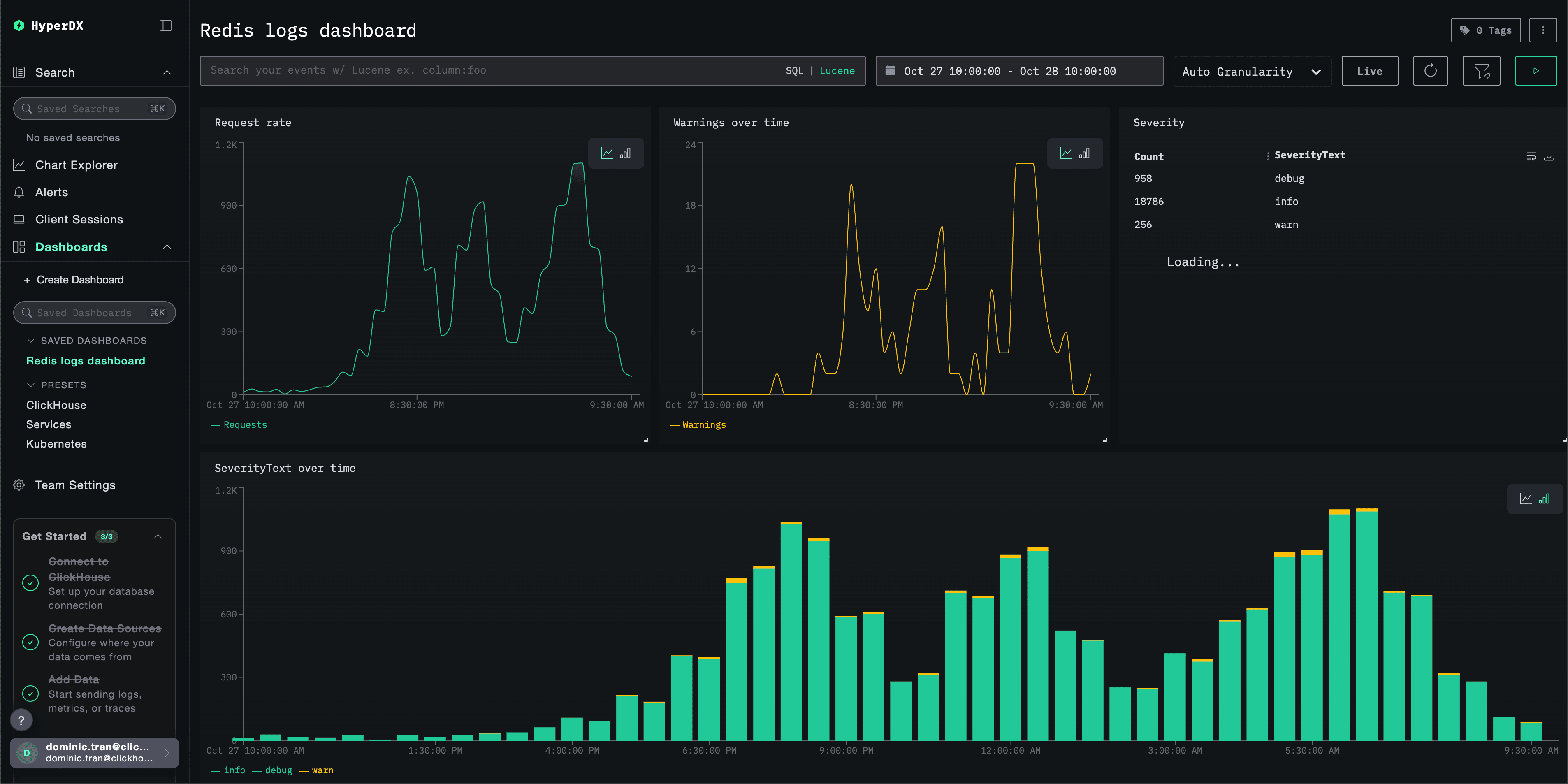

The dashboard will be created with all visualizations pre-configured

Troubleshooting

Custom config not loading

Verify the environment variable is set correctly:

docker exec <container-name> printenv CUSTOM_OTELCOL_CONFIG_FILE
# Expected output: /etc/otelcol-contrib/custom.config.yaml

Check that the custom config file is mounted:

docker exec <container-name> ls -lh /etc/otelcol-contrib/custom.config.yaml
# Expected output: Should show file size and permissions

View the custom config content:

docker exec <container-name> cat /etc/otelcol-contrib/custom.config.yaml
# Should display your redis-monitoring.yaml content

Check the effective config includes your filelog receiver:

docker exec <container> cat /etc/otel/supervisor-data/effective.yaml | grep -A 10 filelog
# Should show your filelog/redis receiver configuration

No logs appearing in HyperDX

Ensure Redis is writing logs to a file:

redis-cli CONFIG GET logfile
# Expected output: Should show a file path, not empty string
# Example: 1) "logfile" 2) "/var/log/redis/redis-server.log"

Check Redis is actively logging:

tail -f /var/log/redis/redis-server.log
# Should show recent log entries in Redis format

Verify the collector can read the logs:

docker exec <container> cat /var/log/redis/redis-server.log
# Should display Redis log entries

Check for errors in the collector logs:

docker exec <container> cat /etc/otel/supervisor-data/agent.log
# Look for any error messages related to filelog or Redis

If using docker-compose, verify shared volumes:

# Check both containers are using the same volume
docker volume inspect <volume-name>
# Verify both containers have the volume mounted

Logs not parsing correctly

Verify Redis log format matches expected pattern:

# Redis Logs should look like:
# 12345:M 28 Oct 2024 14:23:45.123 * Server started
tail -5 /var/log/redis/redis-server.log

If your Redis Logs have a different format, you may need to adjust the regex pattern in the regex_parser operator. The standard format is:

pid:role timestamp level message
Example: 12345:M 28 Oct 2024 14:23:45.123 * Server started

Next steps

Set up alerts for critical metrics (error rates, latency thresholds)
Create additional dashboards for specific use cases (API monitoring, security events)

Going to production

This guide extends ClickStack’s built-in OpenTelemetry Collector for quick setup. For production deployments, we recommend running your own OTel Collector and sending data to ClickStack’s OTLP endpoint. See Sending OpenTelemetry data for production configuration.
